RS-5900 Rain Defence Louvres

  • RS-5900
  • 3D VIEW

RS-5900

3D VIEW

High performing louvres with vertical blades and visible mullions, offering excellent protection against wind-driven rain penetration and very good airflow.

nulla
nulla

INTAKE

nulla

EXHAUST

nulla
  • nulla
    Complex extruded blade design in vertical arrangement for maximum rain defence performance
  • nulla
    Channels in louvre blades to collect and drain water from the louvred area
  • nulla
    Visible mullions to line up with other façade elements; invisible joint detail can be achieved if preferred
  • nulla
    Delivered to site as pre-fabricated modules for efficient installation
  • nulla
    Sightproof design
View 3D Model
Download Data Sheet
View Test Data

KEY FEATURES

  • Blade Orientation: Vertical
  • Mullion Type: Visible
  • Louvre Depth: 130mm
  • Blade Pitch: 38mm
  • Weight: 26kg/m2 based on a 2m x 2m module size

Download data sheet for sectional details

Download Data Sheet

PERFORMANCE

SUMMARY
  • Rain Penetration Class: A up to 3.5m/s
  • Airflow Class: 2 (entry & discharge)
  • Airflow Coefficient Ce (entry): 0.342
  • Airflow Coefficient Cd (discharge): 0.352
  • K factor (entry / discharge): 8.550 / 8.071
nulla
nulla

INTAKE

nulla

EXHAUST

WIND DRIVEN RAIN PERFORMANCE (EN 13030:2001)
Core Ventilation Rate (m/s)0,00,51,01,52,02,53,03,5
Penetration Class (13m/s & 75mm/hr)AAAAAAAA
Effectiveness (%)10099,9199,9299,9499,9610099,99100
AirflowCoefficient of Entry Ce0,342Class 2Coefficient of Discharge Cd0,352Class 2

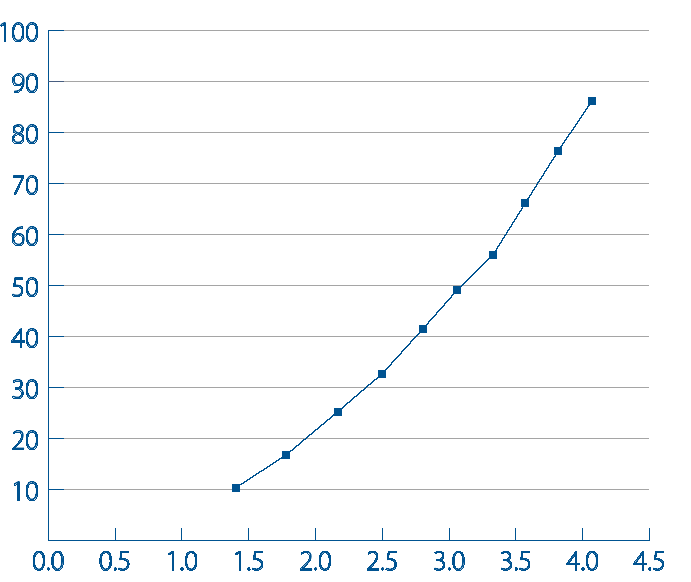

RESISTANCE TO AIRFLOW

RESISTANCE TO AIRFLOW – ENTRY (Ce)2

RESISTANCE TO AIRFLOW – DISCHARGE (Cd)2

Note: Based on a 1m x 1m size. Smaller louvres may have a higher Pressure Drop.

MATERIALS & FINISHES

MATERIALS
  • Aluminium alloy 6063-T6
FINISH OPTIONS
  • Mill finish
  • Clear or colour anodised
  • Polyester powder coated Matt (standard) or gloss

OPTIONAL EXTRAS

  • Head / cill / jamb cover plates
  • Blanking panels (single skin or insulated)
  • Bird / vermin guards, insect mesh
  • Louvred doors
  • Dampers
View all accessories
ADDITIONAL SECURITY OPTIONS
  • Blast Resistant Option: Can withstand up to 12.6psi blast pressure at an impulse of 77.8 psi-msec
